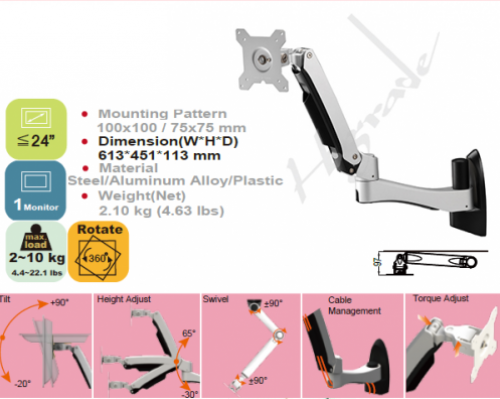

Ergonomic Spring Height Adjust Wall Mount
Ergonomic Spring Height Adjust Wall Mount
Ergonomic Spring Height Adjust Wall Mount

Ergonomic Spring Height Adjust Wall Mount

Ref.Number: ATW20

Description:

Mounting Pattern..............100x100mm/75x75mm
Screw Type....................M4
Material......................Steel/Aluminum Alloy/Plastic
Dimension(W*H*D)..............615*451*113 mm
Weight(Net)...................2.10 kg (4.63 Ibs)
Swivel(Hinge).................+/-90°
Tilt(Hinge)...................+90° / -20°
Tilt(Arm).....................+65° / -30°
Support Max. Weight...........2~10 Kg ( 4.4~22.1 lbs )
Support Flat Panel Size.......≦24''
Max. Distance To The Wall.....613 mm
Min. Distance To The Wall.....97 mm
Rotate(Pivot).................360°
Extended Arm Provided.........2
Height Adjustment Range(Hinge).....315 mm
