Ref.Number: CB2P

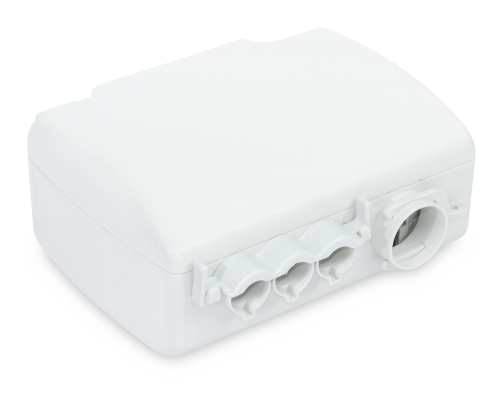

Control Box
Detail
CB2P is specially designed for medical and home care applications. With its compact design, it can be attached to actuator MD60 or MD66 as an integrated set.

Main applications：home care and medical
Input voltage：230V AC 50Hz / 110V AC 60Hz
Output voltage：24V DC / 12V DC
Max. current：3A / 6A @ 24V / 12V DC
Overload protection current：3.0～4.0A (each actuator independently)
Max. number of actuators this control box can drive：2
Duty cycle：10% or 2 min continuous operation in 20 min.
IP protection level：IP65
Protection class：Class II
Color：Light Gray (RAL7035)
Certified：EN 60601-1、EN 60601-1-2
Backup Batteries 9V DC x 2
Cable type：power cord
Cable length：3000mm
