Ref.Number: MD7C

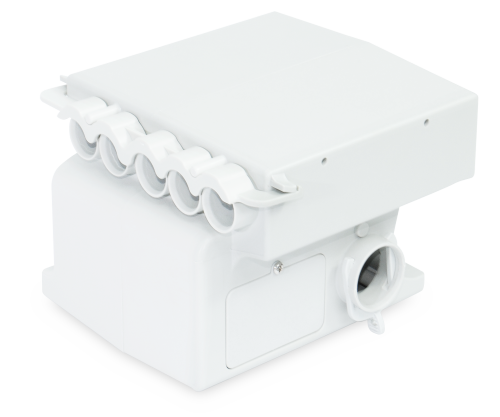

Control Box
Detail
MD7C is specially designed for medical and home care applications. With its compact design, it can be attached to MD7 actuator as an integrated set.

Main applications：homecare, medical
Input voltage：100 / 120 / 230V AC
Output voltage：24V DC
Overload protection current：3A (each actuator independently)
Max. number of actuators this control box can drive：4
Max. number of handsets：1
Duty cycle：10% or 2 min continuous operation in 20 min.
IP protection level：IPX4
Protection class：Class I
Emergency Lowering Function w/ 9V DC Battery x 2
Color：light gray (RAL7035)
Certified：IEC / EN 60601-1, IEC / EN 60601-1-2
