Home / Control Box for Patient Hoist
Ref.Number: CBP2

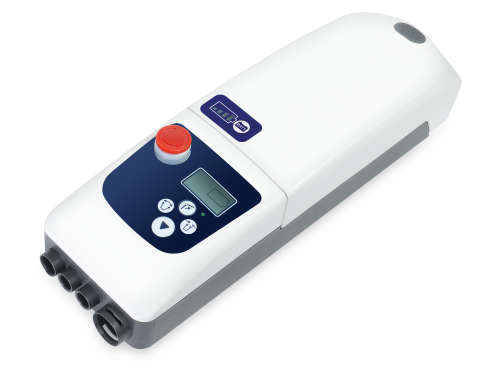

Control Box for Patient Hoist
Detail
Input voltage：100 / 120 / 230V AC
Output voltage：24V DC
Max. current：9A @ 24V DC
Overload protection limit：Max. 9A (5A~9A on demand)
Max. number of actuators this control box can drive：2
Duty cycle：10% or 2 min continuous operation in 20 min.
IP protection level：IP65
Color：RAL 7035 (front cover), RAL 7016 (back cover)
Certified：ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, EN60601-1, EN60601-1-2
