Home / Control Box
Ref.Number: CB4P

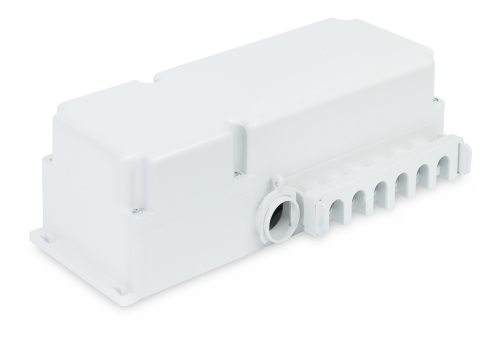

Control Box
Detail
CB4P control box is mainly designed for the medical care applications, such as hospital bed and nursing bed. With the optional High Power and Synchronization functions, there are three versions in this series as CB4P, CB4P-HP, and CB4P-HP-SY.

Main applications：medical, home care, furnitur
Input voltage：120V AC 60Hz, 230V AC 50Hz
Output voltage：24V DC
Max. current：6A @ 24V (CB4P) 9A @ 24V (CB4P-HP, CB4P-HP-SY)
Overload protection current：refer detail to “Compatibility”
Max. number of actuators this control box can drive：4
Duty cycle：10% or 2 min continuous operation in 18 min.
IP Protection level：IPX4
Protection class：Class I
Color：RAL7035
Certified：EN 60601-1, EN 60601-1-2 (for CB4P only)
Cable type：AC power cord
Cable length：3000mm
