Home / Diagnostic Instrument / Breathing catheter cutting machine
Ref.Number: SYT-C50-AC

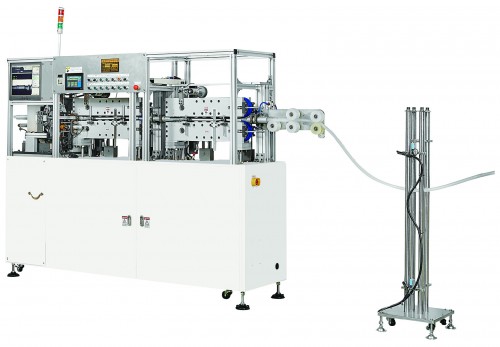

Breathing catheter cutting machine
Detail
Auto Cutting Pipe Machine
SYT-C50-AC
the length of the finished product is 1M, the time for one cutting cycly is 6-8sec.
Clamp pipe function: by air cylinder
Haul off machine, Qty. : 1 set
Haul off pipe function: by servo motor x 2 sets
Clamp pipe tools: use rubber x 2 sets
Clamp pipe to cut function: by air cylinder x 4pcs
Cutting pipe function: by servo motor control
Cutter: use knife
CCD Camera: match photo to centrifugal force cut
CCD image position: servo motor driven and line slider to support with precision balling screw bar to action
Clamp product out function: by air cylinder
Clamp product out displacement: by air cylinder
Electric system
Air system
PLC controller
Touch panel screen
Breathing catheter cutting machine

Breathing catheter cutting machine
