Home / Hospital Related / YGSS625
Ref.Number: YGSS625

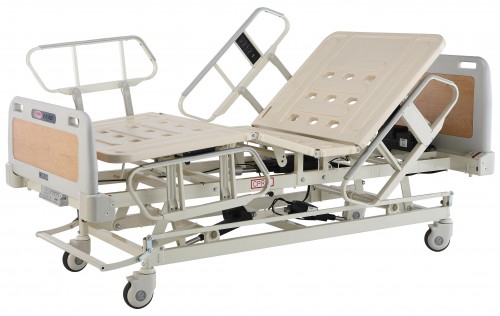

YGSS625
Detail
Specificatioin:
1. Integrated stamping frame is steel made with epoxy polyester powder coated & baked finish, resistant to chipping and scratching.
2. Integrated stamping Bed Tops & Head/Foot boards are made of ABS, washable and removable.
3. Tuck-away half-length safety guard rails
4. High quality 5" (125mm) braking casters.
5. Bed overall size: L 2150 x W960mm (±3%)
6. Bed height: Lo 475mm, Hi 745mm (±3%)
Actuator system:
1.24V DC actuator system
2. Voltage: 110V /60 Hz or 220V / 50Hz
3. Back-up battery
Function:
1. Bed-height adjustable 270mm (±3%)
2. Backrest lifting angle is 0°～80° (±3%)
3. Knee-rest lifting angle is 0°～40° (±3%)
4. CPR pedal: the function make the lifting back-rest back to horizontal quickly (within 2~3 seconds).
Standard Accessories:
1.Instant CPR Release
2.Trendelenburg & Reverse Trendelenburg(12°±1°)
3.Bed end Attendant Control Panel facility (ACP for Nurse Control and lock)
Optional Accessories:
1.Central lockable system/steering system.
2.Telescopic stainless steel IV drip pole with 4 hook
3.Central lockable system with anti dust covering casters.
4.Denmark LINANK Actuator system.
