Home / Home Care / Analog TENS
Ref.Number: GM3A50T

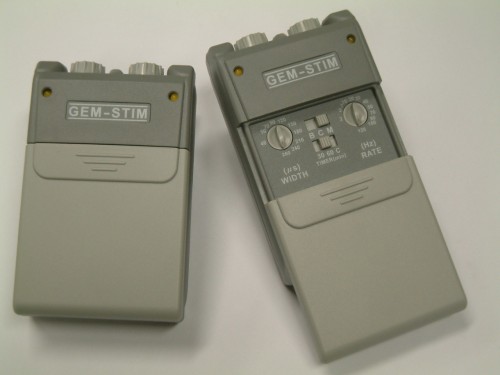

Analog TENS
Detail
The GEMORE dual channel analog T.E.N.S. which is analog appearance but microprocessor inside. So the parameter setting will be more accurate.

Channel:Dual, isolated between channels
Pulse Amplitude:0-80mA into 500 ohm load.
Pulse Rate:Adjustable, from 2Hz ~ 120 Hz
Pulse Width:Adjustable, from 40 μS ~ 260 μS
Mode: B, C, M
Wave Form: Asymmetrical Bi-Phasic Square Pulse
Constant current
Timer (optional): 30,60 min or Continue
Power consumption is very small after timer off
Power saving is good than others
Power: DC 9V battery
Size: 95(H)× 61.5(W) × 26(T) mm
Weight: Approx. 120gm (include battery)
Tolerance: All parameters are+/-10% except the amplitude is +/-20%
