Home / Home Care / Digital EMS
Ref.Number: GM320E

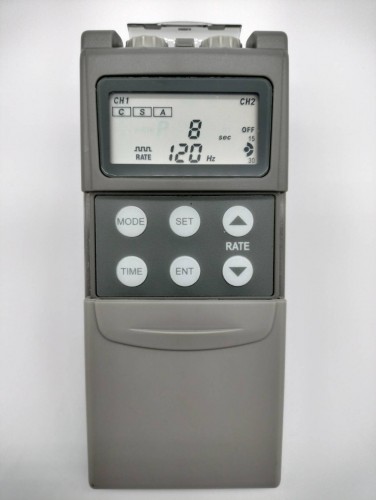

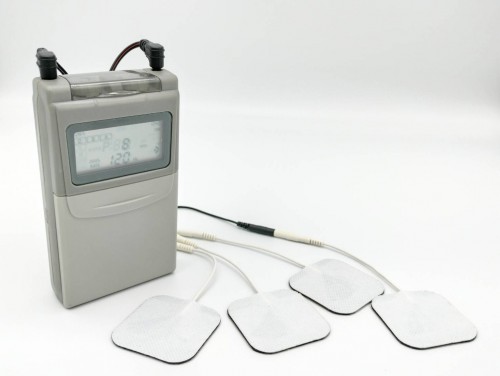

Digital EMS
Detail
The GEMORE new dual channel digital EMS (NMES) with Compliance meter that can store the treatment time used by the patients. Not only can set parameters accurately but also operate easily with LCD display by prescription for patients' condition. This device has a large liquid crystal display and press buttons, which is helpful for the people who can easily set the parameters.

Channel: Dual, isolated between channels
Pulse Amplitude: 0-80mA into 500 ohm load.
Pulse Rate: Adjustable, from 1Hz ~ 160 Hz, 1 Hz/step (1-20Hz), 5Hz/step (20-160Hz)
Pulse Width: 250 μ S fixed
Mode: S/C/A (Synchronous/ Continue/ Alternation)
ON time: 1 – 30 sec adjustable
Ramp time: 1 - 8 sec adjustable
OFF time: 1 - 30 sec adjustable
Wave Form: Asymmetrical Bi-Phasic Square Pulse
Timer: 15,30,60 min or Continue
Constant current
Software ramp up for mode change
Patient compliance meter
Patient Lock system
Six keys: Accurate and Easily parameter setting
Low battery indicator
Power consumption is very small after timer off
Power saving is good than others
Power : DC 9V battery
Size: 108(H)× 61.5(W) × 25(T) mm
Weight: Approx. 140gm (include battery)
Tolerance: +/-10%
