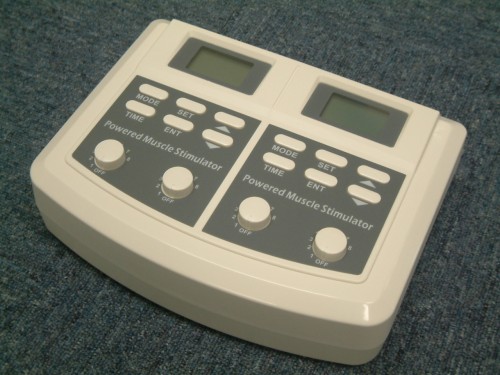

Model : GM380E – 4 CH EMS

Indications for use
 Relaxation of muscle spasms.
 Prevention or retardation of disuse atrophy.
 Increasing local blood circulation. Muscle re-education.
 Maintaining or increasing range if motion.
 Muscle re-education.
 Immediate post-surgical stimulation of calf muscle to prevent venous thrombosis.


TECHNICAL SPECIFICATIONS

Channel: Four, isolated between channels
Pulse amplitude: Adjustable 0-100mA peak into 500 Ω load each channel, constant current
Pulse Rate: 1Hz-160Hz (adjustable), 1Hz/step
Pulse Width: 300μs fixed.
Software ramp up feature: Pulse width ramp up when change mode
Patient Compliance counter: Shows the treatment times. Account by hours.
Patient Lock System: To prevent the user from mis-changing any fixed parameter by physician.
Timer: 5,10,15,20,30,45,60 minutes or Continue selectable
LCD: Shows modes, pulse rate, pulse width, timer, CH1/CH2 (each unit).
ON Ramp: Adjustable 1-8 seconds. 1sec/step.
Cycle ON Time: Adjustable 1-30 seconds. 1 sec/step.
Cycle OFF Time: Adjustable 1-30 seconds. 1 sec/step.

Function Modes:
S: Synchronous.
C: Constant.
A: Alternation.
Wave Form: Asymmetrical Bi-Phasic square pulse.
Max charge per pulse: 30 micro-coulombs maximum
Voltage: 0-110 Volt (Open Circuit).
Power Source: 6 pcs 1.5V UM-3/AA size batteries or 9-Volt adaptor
All electrical specifications are ±10% 500Ω load.
