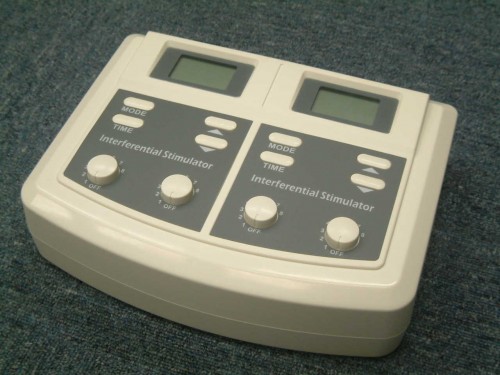

Model : GM382IF – 4 CH IF

Indications for use:
This device may be used, with a physician’s prescription, for the symptomatic relief and management of chronic (long term) pain and for the treatment of postoperative or posttraumatic pain


TECHNICAL SPECIFICATIONS

Channel: Four, isolated between channels.
Pulse intensity: Adjustable 0-90mA peak into 500 ohm load each channel, constant current
Carrier Frequency: 4000Hz fixed (CH1 of each unit)
Modulating Frequency: 4004-4160Hz Adjustable (CH2 of each unit)
IF Frequency Mode: Constant Mode (C): 4-160 bps, Adjustable
Auto Sweep (A): 80-145 bps, 4- 45 bps, 4 Set bps
Frequency Shift (S): 1/1 abruptly shift, 6/6 abruptly shift, 6/6 ramped, 10/10 abruptly shift, 10/10 ramped
Sweep Time: 15 seconds
Frequency Shift Percent: Frequency shifts from 30% below set frequency to 60% above and return to 30% below set.
Output Configuration: Quanta polar (4 electrodes) for each unit
Wave form: Symmetrical balanced Sine wave
Interference Pulse Freq: 4-160 bps, Adjustable 4 bps/step
Pulse Duration: 125μs maximum
Patient Compliance meter: Shows the treatment times
Patient Lock Prevents the patient from changing any of the set parameters by the physician/practitioner.
Timer:
5,10,15,20,30,45,60 minutes or Continue selectable
LCD: Shows ,modes, bps rate, abrupt/ramp, timer and channels
Max charge per Pulse: 22.5 Micro-coulombs Maximum
Power Source: 6 pcs 1.5V UM-3/AA size batteries or 9-Volt adaptor
Tolerance: +/-10%
**** bps: number of beats per second
