Ref.Number: NCA01/ NCB01

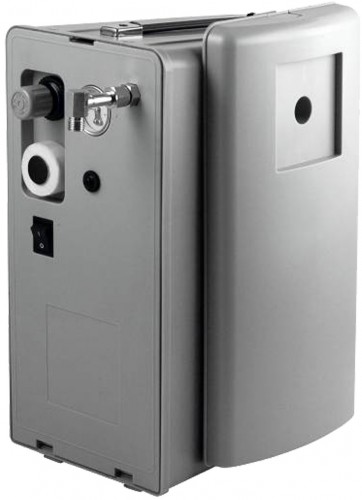

AIR COMPRESSOR
Detail
SPECIFICATIONS
MODEL NCA01/ NCB01
Electrical Requirements 110V/60Hz,230V/50Hz, 220V/60HZ
Flowrate @ pressure
0PSI : 41LPM
10PSI: 34LPM
20PSI: 27LPM
30PSI: 22LPM
40PSI: 16LPM
50PSI: 11LPM
Dimension : 12.2"*7.7"*15.3"
Operating Temperature 50°F~104°F (10°~40 °C)
Operating Humidity 30~75%RH
Operating Atmospheric 12.4~15.4psi (86~106kPa)
Storage Temperature -13ºF ~ 158ºF (-25ºC ~ 70ºC)
Storage Humidity 10%~ 90%RH
Weight: 7.8kgs (17.2lbs)
Size: L * W * H 38cm*27cm*45.5cm (15”*10-5/8”*18”)
Qty/ carton 1pc
Qty for container 660pcs/20ft, 1320pcs/40ft
Accessory: DISS air outlet
