Home / Hospital Related / ASPIRATOR / SUCTION UNIT
Ref.Number: SUA01-A30/ SUB01-A30

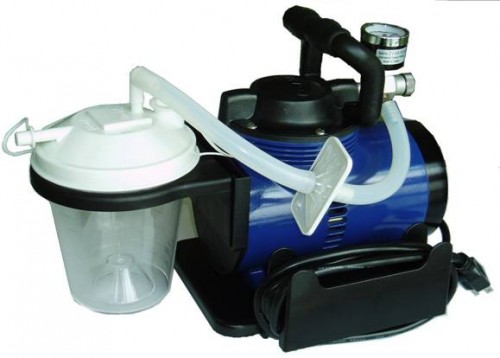

ASPIRATOR / SUCTION UNIT
Detail
SPECIFICATIONS
Electrical Requirements 110V/60Hz, 230V/50Hz, 220V/60Hz
Maximum Vacuum 560 mmHg
Flow Range >40LPM (up to 53LPM)
Sound Level <58dBA
Vacuum Pump Type: Diaphragm
Bacteria Filter Pore Size 0.2 Micron
Collection Bottle Capacity 800ml
Operating Temperature 32°F~104°F (0°~40 °C)
Operating Humidity 95%RH
Operating Atmospheric 10.2~15.4psi (70~106kPa)
Storage Temperature 14°F~158°F (-10°C~70 °C)
Storage Humidity 95%RH
Storage Atmospheric Pressure 7.5~15.4psi (50~106kPa)
Weight: 12.5LBS
Size: L * W * H 17"*10"*10-7/8"
Qty for container 936pcs/20ft
