Description
With a heritage on hinge technology, Highgrade Tech. is committed to provide a wide range of best-in-class solutions for the Healthcare Industry. The intuitive series have been included with Mobile Carts, Workstation Kits, Bedside ARMs, Medical/Media Mounts, etc. They have been designed for professional caregivers to meet most EMR, Clinical Documentation, Medication Dispensing and Workflow, etc.

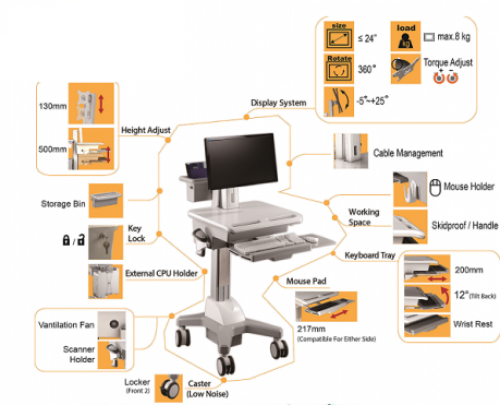

CNH01, defined as a mobile cart, featured as non-powered model with manual LIFT. It’s designed to support one display with ergonomic torque adjust to meet most uses in need. Internal compartment has been implemented with sufficient room for mini form factor while external kit available for larger CPU form factors. Ergonomic accessories have been set up as default which cover scanner holder, tilted K/B tray, mouse holder, ventilation fan and storage bin, etc.

Complete System
Net Weight 68.36 lbs (31 kg)
Packaged Dimension 800x640x1450 mm
Display System
Hinge Module Tilt -5°(down) ~ +25°(up)
Pivot 360°
User Torque Adjust available
Display Support Mount Pattern VESA 75x75/ 100x100 mm
Panel Size Support ≤ 24”Suggested
Max. Weight Load 17.6 lbs (8 kg)
Height Adjust Range 5.12" (130 mm)
Tension Torque Adjust Yes
Cable Management Yes
Working Space
Type Desk Open Workspace (Seamless)
Effective Working Space Dimension 517x376 mm
Max. Load (including compartment) 16.5 lbs (7.5 kg)
Skidproof Yes
Protection
Antimicrobial Processed Yes
Storage
CPU Compartment Max. Effective Dimension W425xD325xH90 mm
Key Lock Yes
Keyboard Tray Max. Effective Working Dimension 449x207 mm
Wrist Comfort Yes
Mouse Pad Max. Working Space 217x213 mm
Right-Left Slide in-&-out Yes
Mouse Holder Yes
Scanner Holder Yes
Base System
Cart Base Material Plastic / Steel / Alumimum Alloy
Caster No. 4
Locking Front 2
Low Noise Yes
Main Lift Lift Handle Yes
Height Adjust Range 19.7" (500 mm)
Tension Torque Adjust Yes
*Locking the LCD Height Adjust Module (HAM) & Main Lift are always essential when the cart on move.
