Home / Cantilever Spring Arm Ergonomic 24 inch Adjustable Monitor LCD desk / table stand
Ref.Number: ATI20

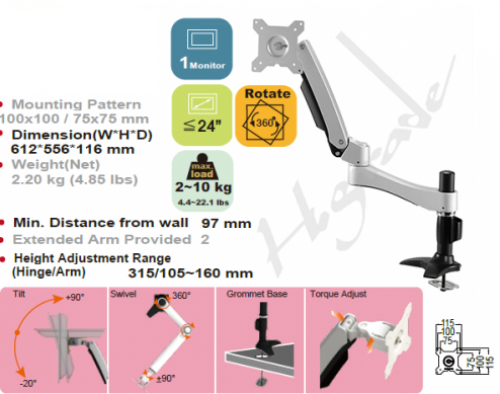

Cantilever Spring Arm Ergonomic 24 inch Adjustable Monitor LCD desk / table stand
Detail
ounting Pattern.............100x100/75x75mm
Screw Type..................M4
Material....................Steel/Aluminum Alloy/Plastic
Dimension(W*H*D)............620*559*123 mm
Weight(Net).................2.90 Kg (6.39 Ibs)
Swivel(Hinge)...............+/-90°
Tilt(Hinge).................+90° / -20°
Tilt(Arm)...................+65° / -30°
Support Max. Weight.........2~10 Kg ( 4.4~22.1 lbs )
Support Flat Panel Size.....≦24"
Min. Distance To The Wall...97 mm
Rotate(Pivot)...............360°
Extended Arm Provided.......2
Height Adjustment Range(Hinge/Arm)....315 mm/105~160 mm
