Home / Hospital Related / 90 Watt Medical Adapter
Ref.Number: ATM090 Serial

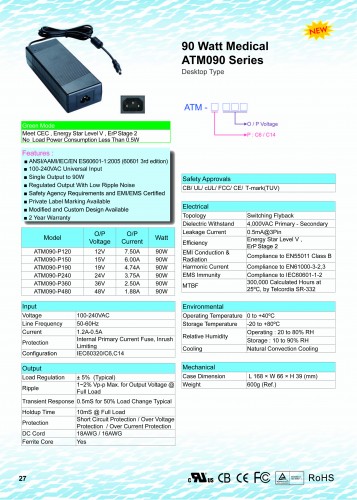

90 Watt Medical Adapter
Detail
Feature:
♦ Input :Universal 100 ~ 240 Vac / 50 ~ 60 Hz Input, without any slide switch.
♦ Output :12V, 15V, 19V, 24V, 36V, 48V
♦ Case Dimension: 168 (L) * 66 (W) * 39 (H) mm
♦ Efficiency:Eff (av) ≧ 87%
♦ Safety:UL/cUL/T-mark ANSI/AAMI ES60601-1:2005(60601 3rd edition)
♦ EMI:CE/FCC Class B; Conduction & Radiation Met.
♦ Protection:OVP (Over Voltage Protection), SCP (Short Circuit Protection),
OCP (Over Current Protection), OTP (Over Temperature Protection)
♦ High frequency design, less power consumption.
♦ Suitable for usage at Medical.
♦ Meet DoE / ErP (Stage 2) / MEPS V
