Home / Hospital Related / ICU ventilator
Ref.Number: SD-H3000B
ICU ventilator
Detail

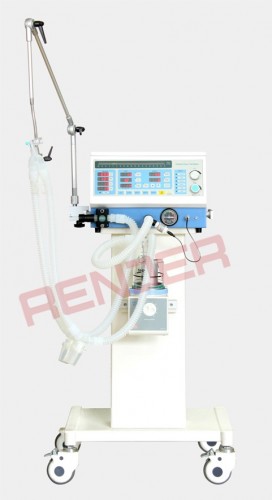

SD-H3000B Military ICU Ventilator
Ventilator:
Application: Adult、Pediatric
Driven mode: Pneumatically driven electric controlled
Working mode: Time switch
Respiratory mode: A/C、A/C+SIGH、SIMV(f/2、f/4)、SPONT
Tidal Volume: 100～1200mL
Frequency: 6～60bpm
I: E: 2:1～1:8 totally 8 shifts
Pressure trigger sensitivity: -2～0Pa
High Pressure limitation: 2～6KPa
Low pressure limitation: 0～2KPa
PEEP: 0～1KPa,（Optional）
Alarm Mute: ≤ 120 seconds
Monitor Parameter: Tidal volume、Minute volume、total frequency、Peek airway pressure、O2 concentration、self Trigger
Alarming parameters: Low O2、High airway pressure、Low airway pressure、Power failure、Continuous Pressure、Apnea、Low tidal volume、High O2 concentration、Gas failure
Power supply: AC220V,50Hz
Humidifier:
Temp. control adjustable
Over Temp. Self protection function
Optional: Air compressor
