Home / Hospital Related / 200 Watt Medical Adapter
Ref.Number: ATM200 Serial

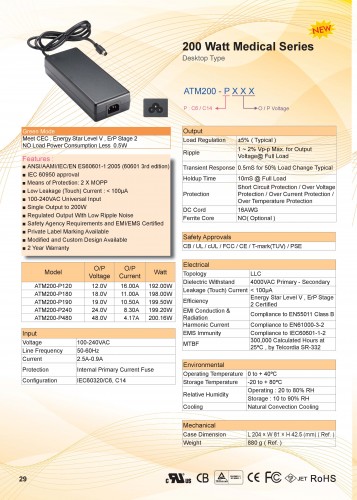

200 Watt Medical Adapter
Detail
Feature：
♦ Input： Universal 100 ~ 240 Vac / 50 ~ 60 Hz Input, without any slide switch.
♦ Output： 12V, 18V, 19V,24V, 48V
♦ Case Dimension： 204 (L) * 81 (W) * 42.5 (H) mm
♦ Efficiency：Eff (av) ≧ 87%
♦ Safety：UL/cUL/T-mark ANSI/AAMI ES60601-1:2005(60601 3rd edition)
♦ Means of Protection: 2 X MOPP
♦ EMI：CE/FCC Class B; Conduction & Radiation Met.
♦ Protection：OVP (Over Voltage Protection), SCP (Short Circuit Protection),
OCP (Over Current Protection), OTP (Over Temperature Protection)
♦ High frequency design, less power consumption.
♦ Suitable for usage at Medical.
♦ Meet DoE / ErP (Stage 2) / MEPS V / NRCan
