Home / Hospital Related / Breathing Catheter Extrusion Machine
Ref.Number: SYT-C40BA-L

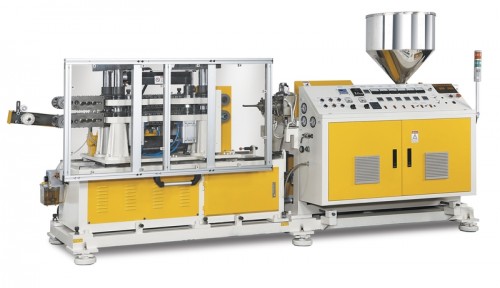

Breathing Catheter Extrusion Machine
Detail
Model SYT-C40BA SYT-C40BA-L
Material PE. PP. EVA. PE. PP. EVA.
Pipe ID. Minimum (mm) 40 40
Pipe OD. Maximum (mm) 12 12
Pipe production capacity (M/min) 3 - 10 5 - 13
Extruder production capacity (kg/hr) 50 - 52 58 - 60
成形系統 Blow Blow
Chain length (mm) 3000 - 3200 3800 - 4000
Closed chain length (mm) 1250 1650
Drive motor (hp/kw) 3 / 2.25 3 / 2.25
Pairs of mold blocks 60 - 64 76 - 80
Mold cooling system Air or Water Air or Water
Energy Requirements
Hydraulic power (hp/kw) 2 2
Air pressure (kg/cm) 6-8 6-8
Air requiremint (L/min) 240 240
Oil tank capacity (gallon) 20 20
Cooling water (L/min) 120 120
Cool water lowest press 1.5 1.5
Total connected load (hp/kw) 47 / 35 55 / 41
Average consumption (hp/kw) 36 / 27 41 / 31
Machine dimension (LxWxH/M) 4.2×1.6×1.8 4.8×1.8×2.2
Machine weight (Tons) 3.6 5.2
Breathing Catheter Extrusion Machine

Breathing Catheter Extrusion Machine
