Home / Actuator for Home Care Application
Ref.Number: MD66

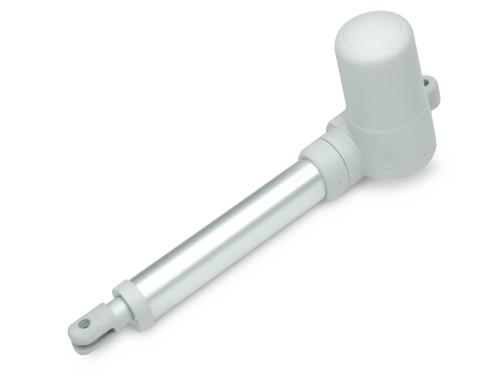

Actuator for Home Care Application
Detail
MD66 is quiet and powerful actuator designed for use in home care and medical bed. The control boxes, MD6C and CB2P, which can be perfectly attached and integrated to MD66 are available for customers to choose.

Main applications：home care and medical
Input voltage：24V DC / 12V DC
Max. load：6000N (push) / 4000N (pull)
Max. current：2.8A @ 24V DC
Max. speed：16.6mm/sec @ no load, 12.2mm/sec @ 6000N
Stroke：50, 100, 150, 200, 250, 300mm (other stroke available)
Duty cycle：10% (max. 2 min. continuous operation)
IP protection level：IPX4
Color：RAL7035 / Black
Certified：IEC60601-1 / EN60601-1
Noise level：≦ 50dB
Preset limit switches
