Home / Actuator for Medical Application
Ref.Number: MD80

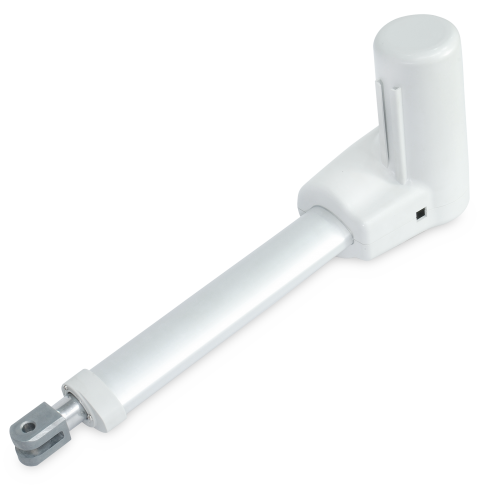

Actuator for Medical Application
Detail
MD80 is a quiet and powerful actuator designed for use in a variety of medical and home care applications such as patient hoist and bed.

Main applications：homecare and medical
Input voltage：24V DC
Max. load：8000N (push) / 6000N (pull)
Max. current：5.5A
Max. speed at no load：16.6mm/sec
Max. speed at full load：5.5mm/sec @ 8000N
Stroke：50 ~ 400mm
Duty cycle：10% or 2 min. continuous operation in 20 min.
IP protection level：IPX4
Color：RAL 7035
Certified：EN60601-1-2 / EN55011 / EN61000-4-2 / EN61000-4-3 / EN61000-4-8
Noise level：＜53dB
Preset limit switches
Steel extension tube
Working environment temperature：+5 ~ 40°C
Clevis type of metal connectors. Rear connector’s pivot angle can be chosen in every 30 degrees.
