Home / Control Box
Ref.Number: MD6C

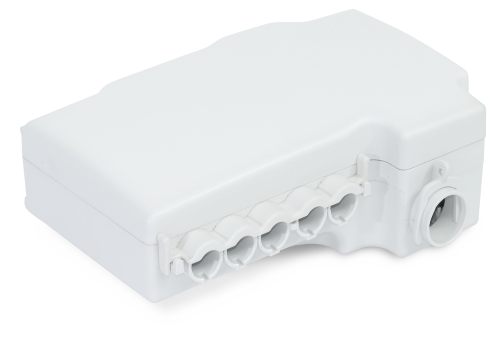

Control Box
Detail
MD6C is specially designed for medical and home care applications. With its compact design, it can be attached to actuator MD60 or MD66 as an integrated set.

Main applications：homecare, medical
Input voltage：100V AC / 120V AC / 230V AC
Output voltage：24V DC
Max. current：6.5A@ 24V
Overload protection current：3.0～4.0A (each actuator independently)
Max. number of actuators this control box can drive：4
Emergency Lowering Function w/ 9V DC Battery x 2
Duty cycle：10% or 2 min continuous operation in 20 min.
IP protection level：IPX4 (indoor use only)
Color：light gray RAL7035
Protection class：Class II
Cable length：3000mm
Cable type：power cord
Certified：EN 60601-1-2, EN 55011, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5
