Home / Actuator for Furniture
Ref.Number: FD20

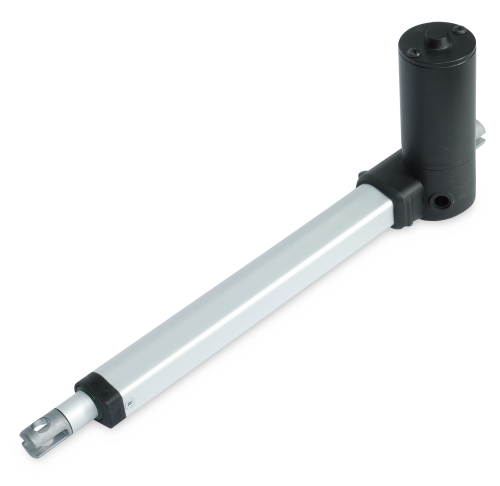

Actuator for Furniture
Detail
FD20 is a compact and quiet actuator designed for use in furniture, homecare and fitness equipment. To meet various application needs, there are several models with different speed and load for customer to choose.

Main applications:Furniture, homecare and fitness equipment.
Input voltage:24V DC
Max. load:2000N (push / pull)
Max. current:3.2A @ 24V DC
Max. speed at no load:33.2 mm/sec
Max. speed at full load:6.5 mm/sec @ 2000N
Stroke:50 ~ 250 mm
Duty cycle:10% or 2 min continuous operation in 20 min.
IP Protection level:IP42
Color:Black
Certified:EN55014-1
Noise Level:≦53dB
Preset limit switches
