Home / Double Motor
Ref.Number: TW40/TW60

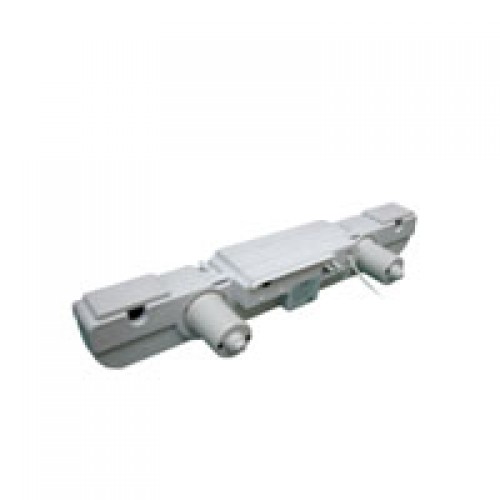

Double Motor
Detail
Input: 100 / 120 / 230 VAC
Max. Load: 2 * 4,500N (TW40)
Max. Speed: 5 mm/sec
Stroke: 87 mm (Back) / 69 mm (Legs) (Other Strokes Available)
Emergency Lowering Function by 2 * 9V Batt.
Duty Cycle: 10% (max. 2 min continuous on)
Protection Rating: IP20
