Home / Home Care / Continuous and Pulse dose dual mode Portable Oxygen Concentrator
Ref.Number: Mercury Series OX-2A-E

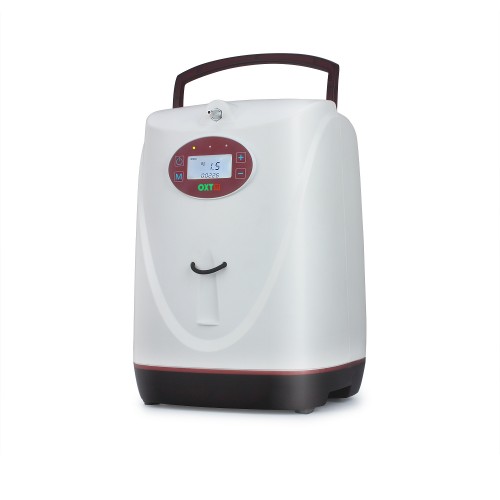

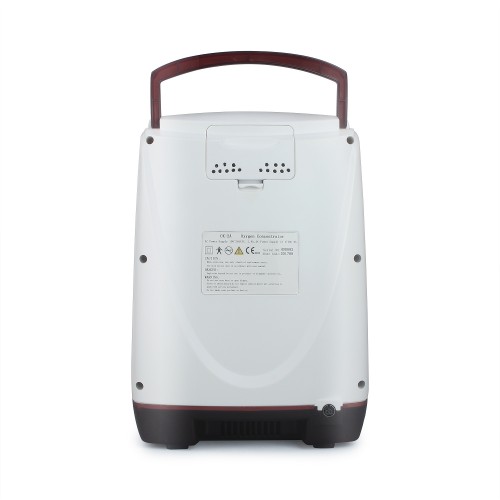

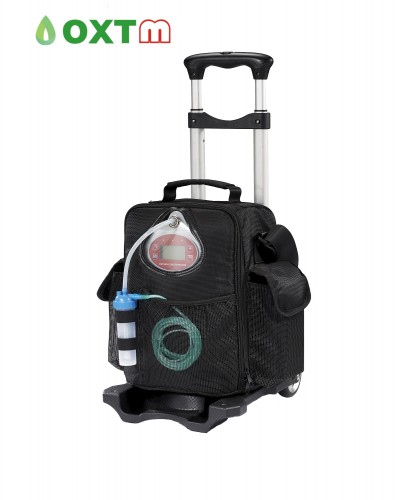

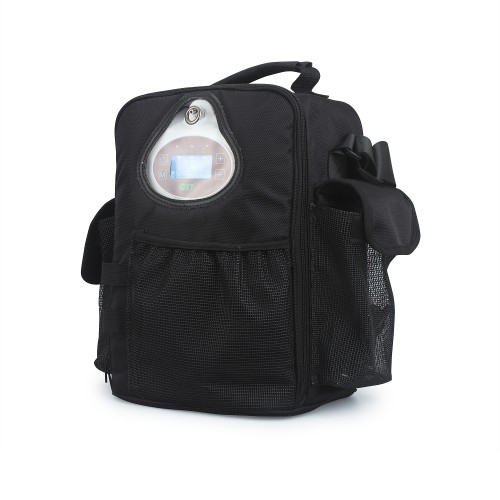

Continuous and Pulse dose dual mode Portable Oxygen Concentrator
Detail
Item No. OX-2A ( Continuous & Pulse dose dual mode)
Delivery Rate (LPM) 0.5-2.0
Maximum Fow (LPM) 2 , 12 settings in pulse mode

Electrical Requirement (Voltage/Hz) 100~240VAC50/60Hz

Output 13.5V DC, 14A Max

Purity 87~96 (%) (0.5-2.0 L)

Power Consumption (Watt) 100 (Aver.)

Weight 5.4 (Kg)

Noise Level dB(A) front 1 M < 45 front 1 M < 45

Battery 12-17V DC / 6600mAh

Battery Duration(Mins)

Pulse Dose Continuous

Setting ml Mins
Setting 1 6 ml 300 mins
Setting 2 12 ml 235 mins
Setting 3 18 ml 235 mins
Setting 4 24 ml 200 mins
Setting 5 30 ml 200 mins
Setting 6 36 ml 165 mins
Setting 7 42 ml 165 mins
Setting 8 48 ml 145 mins
Setting 9 54 ml 135 mins
Setting 10 60 ml 132 mins
Setting 11 66 ml 115 mins
Setting 12 72ml 110 mins


L/Min Mins
0.5 240
1.0 165
1.5 120
2.0 75


Dimensions (mm) 200 (L) x 230(W) x 325 (H)

OCI ( Optional ) YELLOW: 82% below
RED: 70% below YELLOW: 82% below
RED: 70% below

Warranty 2 Years
