Home / Oxygen Concentrator / Pulse dose portable oxygen concentrator
Ref.Number: Venus Series Venus 5

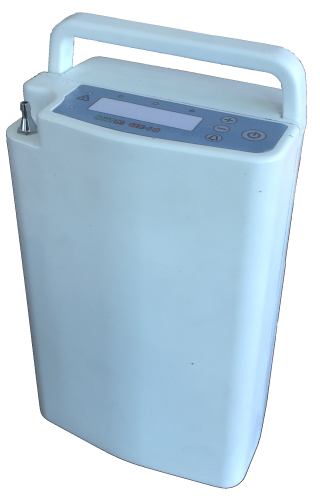

Pulse dose portable oxygen concentrator
Detail
SPECIFICATIONS

Technical Specification
( Pulse dose )
Oxygen Concentration : 87%~96% at all flow rates, Based on atmospheric of
14.7psia(101 kPa) at 21℃
Power requirements : AC adaptor : 100~240V AC (±10%),50/60Hz in,16.8V DC ,6A out
DC adaptor : 12.0~16.8V DC in,16.8V DC out
Sound Level : 42dBA at setting 2 and 15 BPM
(when measured at 1 m from front of device)
Alarm type : No breath, low oxygen concentration, high breath rate, technical
fault, low battery, no flow ,depleted battery, external power failure
Outlet pressure : 8.5±0.5 psi
Operation Temp. /Humidity : 5~35℃/ 5~90%RH
Storage Temp. /Humidity : -20~70℃/ 5~95%RH
Dimension(mm) 115 (L) x 158 (W) x 255 (H) mm
Weight 2.2 kg ( with internal battery)
Flow settings and pulse volumes ( ml ) :

Setting
Breath per minute
1 2 3 4 5
15 11 22 33 44 55
20 11 22 33 44 50
25 11 22 33 40 40
30 11 22 33 33 33
35 11 22 30 30 30
40 11 22 25 25 25
+/- 25% or 6 ml, whichever is greater over the rated environmental range
