Home / Oxygen regulator / Pin Index Oxygen Regulator
Ref.Number: ME7517

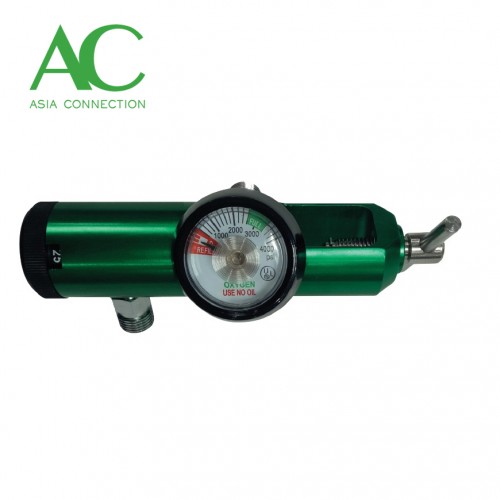

Pin Index Oxygen Regulator

Pin Index Oxygen Regulator - ME7517

Pin Index Oxygen Regulator is designed to reduce the pressure and control the flow of oxygen from a oxygen cylinder or tank. The unit features a built-in flow control valve which maintains a pressure of 50 PSI and provides a variable flow rate within 0-25 LPM when provided with a cylinder from levels that can be safely used by the end user. ME7517 O2 Gas Regulator is intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions.

Specifications
Detail

Features



  • Compact design saves space and weight.

  • Aluminum alloy body with brass core construction will not rust for durability.

  • Barb outlet connection.

  • Built-in flowmeter available in 0-25 LPM increments.

  • Maximum inlet pressure 4000 psi.

  • Present outlet pressure 50 PSI.


Specification



  • Oxygen regulator pin index style click stop

  • DISS Outlet



Contents



  • Oxygen Regulator individually packed.


Regulations


FDA
